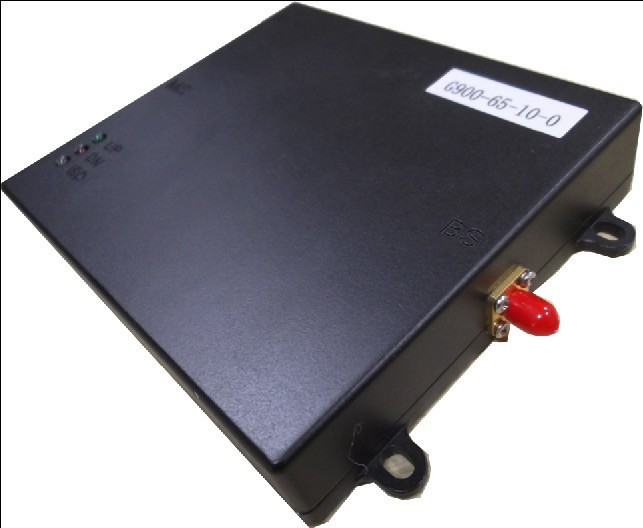

High Speed Black Cell Phone Signal Repeater , High Gain Amplifier ≥ 65dB
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | GSM Signal Booster | Gain | ≥ 65dB |
|---|---|---|---|
| Dimensions | 115*150*30 (mm) | Weight | ≤ 1.5 Kg |
| Pass Band Ripple | ≤3dB | RF Connector | SMA-F |
| Frequency Range | Uplink:890—915MHZ Downlink 935-960MHz | Size | 150×115×27mm |
| Highlight | mobile phone signal repeater,GSM Signal Repeater |
||
Product Description
High Speed Black Cell Phone Signal Repeater , High Gain Amplifier ≥ 65dB
Quick Details:
Gain: ≥ 65dB
Dimensions: 115*150*30 (mm)
Weight: ≤ 1.5 kg
2. Features and function
● testing the isolation of outdoor and indoor antenna
● Automatic adjustment (AGC) big coverage
● High-speed figure ALC
● output power indication
● automatically be standby without calls.
●automatically shut off of uplink and downlink once self-excitation.
● Clearance noise function of uplink and no interference to base station
● Uplink and downlink gain automatic balance;
●Small size, light weight, beautiful appearance, high gain and low power dissipation.
● Low noise amplifying, improving communication quality and reduction of dropped calls;
●Good aluminum shell shield, greatly improving the anti-interference ability.
● Easy installation and operation
Applications
This product is mainly used for indoor small coverage. It is widely used in car parking, business centers, entertainments, car and boats etc.
Technology index
|
model |
color |
frequency |
||
|
uplink |
downlink |
|||
|
G900-65-10-O |
off-white |
890-915 |
935-960 |
|
|
Electrical items |
index |
|||
|
max gain |
65±3dB |
|||
|
uplink output power |
≥10,17dBm |
|||
|
Downlink output power |
≥10,17dBm |
|||
|
Noise figure (Max gain) |
≤5.0dB |
|||
|
Pass band ripple |
≤4.0dB |
|||
|
ALC/AGC (range) |
≥30dB |
|||
|
Intermediation attenuation
|
Output 10dBm≤-50dBc |
|||
|
Output 17dB≤-45dBc |
||||
|
Output 20dBm≤-40dBc |
||||
|
Output 23dBm≤-36dBc |
||||
|
Max input power |
≤-25dBm |
|||
|
Spurious Emission is 2.5MHz away from working band edge
|
9kHz～150kHz |
≤-36dBm @1kHz |
||
|
150kHz～30MHz |
≤-36dBm @10kHz |
|||
|
30MHz～1GHz |
≤-36dBm @100kHz |
|||
|
1GHz～12.75GHz |
≤-36dBm @1MHz |
|||
|
transmission delay |
≤1.0μs |
|||
|
Indicator lights |
ISO(white and blue light):isolation indicator |
|||
|
DN (Red):downlink working indicator |
||||
|
UP (green):uplink working indicator |
||||
|
Working voltage |
DC 5.0V |
|||
|
working current |
≤1.5A |
|||
|
Power adaptor |
AC 100～240V,50/60Hz |
|||
|
Ambient temperature |
-5℃～+45℃ |
|||
|
relative humidity |
≤85% |
|||
|
structural items
|
index |
|||
|
RF connector |
SMA-F |
|||
|
Power port |
KLD-40-17 |
|||
|
Dimensions |
150×115×27mm |
|||
|
weight |
≤0.5Kg |
|||
