High Gain Mobile Phone Signal Repeater / Booster / Amplifier With Power Supply
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cell Phone Signal Repeater | Pass Band Ripple | ≤3dB |
|---|---|---|---|
| I/O Impedance | 50Ω/N Connector | Size | 220 X 140 X 40 Mm |
| Coverage Area | 2000 M2 | Export Power (Po) | ≥27dBm |
| Highlight | Cell Phone Signal Amplifier,GSM Signal Repeater |
||
Product Description

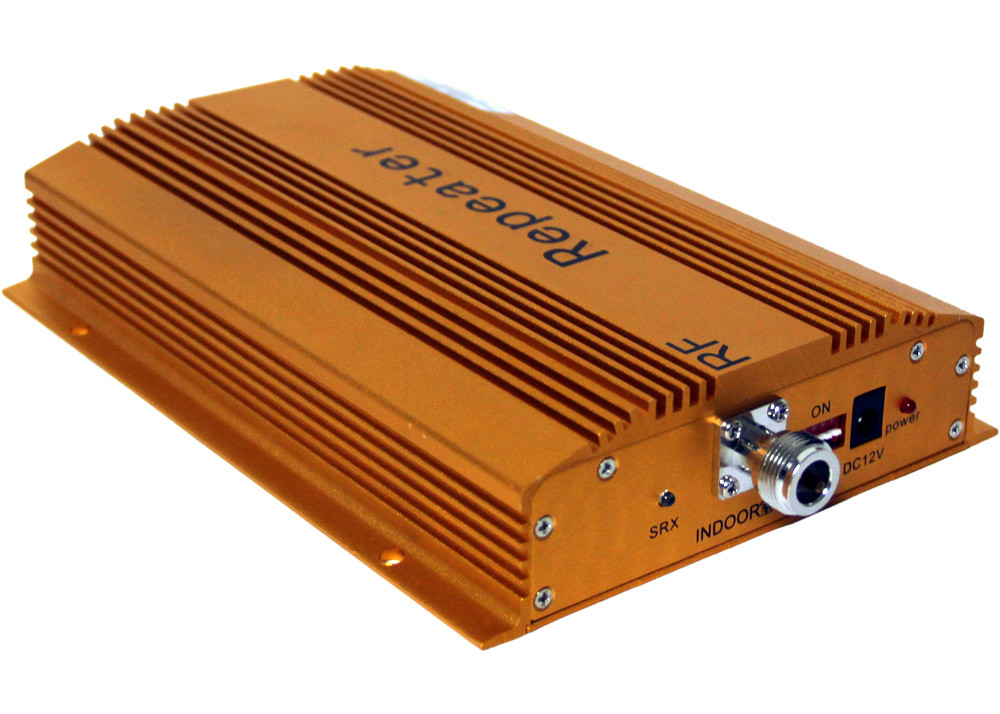

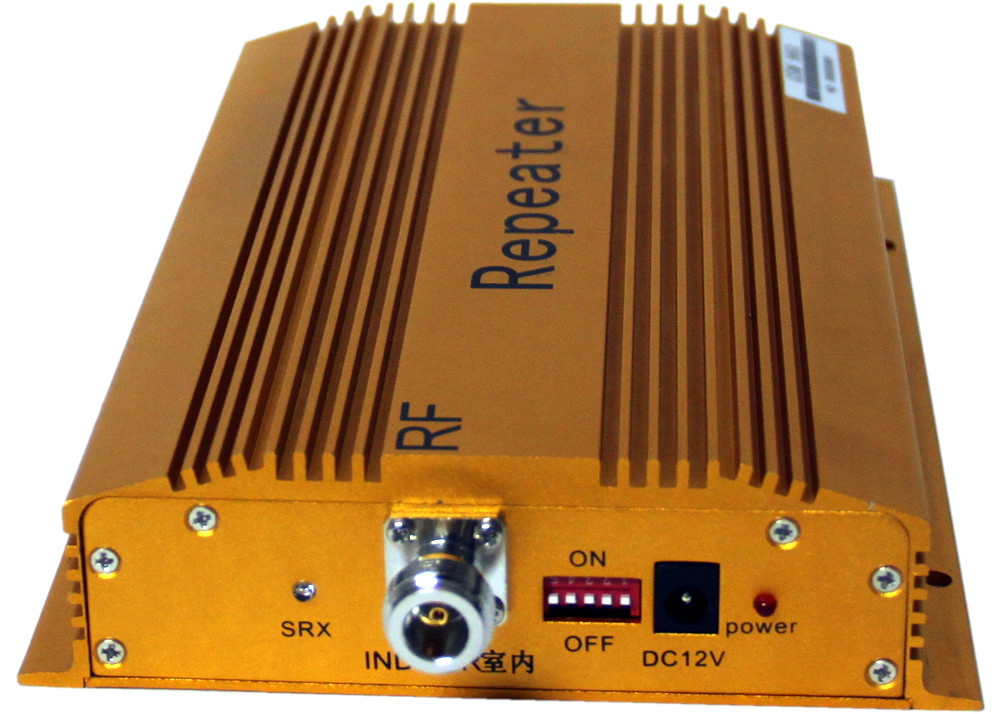

High Gain Mobile Phone Signal Repeater / Booster / Amplifier With Power Supply
Amplify the signal for the mobile phone. Making you keep in touch ..
EST series repeater can amplify the signal for the mobile phone. Making you keep in touch with others freely even in the place without signal or with weak signal.
1. Features
Adopt two ports full-duplex design
Practical, beautiful and easy to install
Good reliability, meet the standard of GB6993-86
The compatibility of electromagnetism meets the standard of ETS300 609-4
ATT & ALC Auto-adjustment for electronic leve
2 Technique
|
Frequency range |
Uplink:890—915MHZ Downlink 935-960MHz |
|
Gain ( dB) |
Uplink Gp≥55 Downlink Gp≥60 |
|
Export power (Po) |
≥20dBm |
|
Pass band ripple |
≤3dB |
|
I/O impedance |
50Ω/N connector |
|
Noise figure |
≤4dB |
|
Transmission Delay |
≤0.5μs |
|
Ambient temperature |
-10℃～60℃ |
|
Power supply |
AC110～240V 45～55Hz |
|
Size |
220 x 140 x 40 mm |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic compatibility |
To the ETS300 694-4 standard |
|
Function |
a) Power supply LED denote b) Export power LED denote |
|
coverage area |
500 m2 |
3 lInstallation Approaches
- Fix up outdoor antenna reception on housetop and point to signal tower.
- Connect outdoor antenna to “outdoor” port in repeater machine through cable.
- Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
- Plug power adaptor into AC power socket and finish installation
