Fixed 25W 500m Shielding Waterproof Drone Jammer 2500MHz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Fixed Anti-drone Device / Civil Drone Jammer | Material | Aluminum Case + FRP Antennas |
|---|---|---|---|
| Antenna | 3pcs FRP Omnidirectional Antennas; Or Directional Panel Antenna(optional) | Frequency Bands & Power Output | GPS L1: 10W; 2.4G WIFI: 10W; 5.8G WIFI: 5W; |
| Total Output Power | 25W | Shielding Radius | 300-500m(with Omnidirectional Antennas); 500-800m(with Directional Antennas, Optional) |
| Total Power Consumption | 65W | Power Supply | AC / DC Adapter(Input: 220V; Output: 24V 6.2A), 24/365 Non-stop Working Is Available |
| Main Unit Size | 280*180*90mm (excluding Antennas) | Antenna(L) | 500mm |
| Weight | 5KG | Packing List | Main Unit *1, Antenna *3, AC Adapter *1, User Manual *1, Warranty Card *1 |
| Highlight | 500m Shielding Waterproof Drone Jammer,25W Waterproof Drone Jammer,2500MHz Drone UAV Interceptor |
||
Product Description
Non-Stop Working Available Fixed Waterproof Outdoor Drone Jammer UAV Interceptor Active Drone Defense System
1. Technology
Type: fixed anti-drone device / civil drone jammer Material: Aluminum Case + FRP Antennas Antenna: 3pcs FRP omnidirectional antennas; or directional panel antenna(optional) Frequency Band & Output Power(can be customized): CH1: 2.4G Wi-Fi: 2400-2500MHz------------------------------------------------------------------- 40dBm / 10W; CH2: 5.8G Wi-Fi: 5715-5860MHz------------------------------------------------------------------- 37dBm / 5W; CH3: GNSS(GPS L1/Galieo L1/Glonass L1/Beidou-B1): 1550-1630MHz:--------------- 40dBm / 10W; Total Output Power: 25W Shielding radius: 300-500m(with omnidirectional antennas); 500-800m(with directional antennas,optional) Total Power Consumption: 65W Power Supply: AC / DC adapter(Input: 220V; Output: 24V 6.2A), 24/365 non-stop working is available *Intercept Way(Working Principle): it can interfere with the flight of drone by emitting multi-band high-power electromagnetic waves, which can intercept the drone control signals within radius 500 meters, forcing the drone to land or return home. Main Unit Size: 280*180*90mm (excluding antennas) Antenna(L): 500 mm Weight: 5KG Environment temperature(-40 ～ +55)℃ Relative humidity: ≤85 %RH
Product Name:
|
Non-Stop Working Available Fixed Waterproof Outdoor Drone Jammer UAV Interceptor Active Drone Defense System |
Model No.:
|
EST-710G3 |
Color:
|
Silver |
Material:
|
Aluminum Case + FRP Antennas
|
Antenna:
|
3pcs FRP omnidirectional antennas; or directional panel antenna (optional)
|
Total Output Power:
|
25W
|
Shielding Distance:
|
radius 300-500m(with omnidirectional antennas); or directional 500-800m
(with directional antennas,optional)
|
|
Intercept Way (Working Principle) |
It can interfere with the flight of drone by emitting multi-band high-power electromagnetic waves, which can intercept the drone control signals within radius 500 meters, forcing the drone to land or return home.
|
Main Unit Size:
|
280*180*90mm
|
FRP Omnidirectional
Antennas(L):
|
500mm
|
Product Weight:
|
5kg
|
Working Temperature:
|
-40℃ ~ +55℃
|
Relative Humility:
|
≤90%(RH)
|
Air Pressure:
|
86~106kPa
|
Safety Regulation:
|
AC Adapter UL (E190582) / CSA (LR112971 Level 3)
|
2. Application Place *Big event, major sports event, concert, large gathering, border patrol, airport, army, counter-terrorism unit, SWAT, detention center, power plant, gas station, oil refinery, mining area, sensitive facility, private territory, president selection, speech, etc. *Other places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government, military, finance, security, police and command center.
3. Packing List 1). Outdoor fixed drone jammer main unit(with power cord)----------------1 piece 2). FRP omnidirectional antennas-------------------------------------------------1 set(3pcs)
3). User manual -----------------------------------------------------------------------1 piece 4). Warranty card----------------------------------------------------------------------1 piece

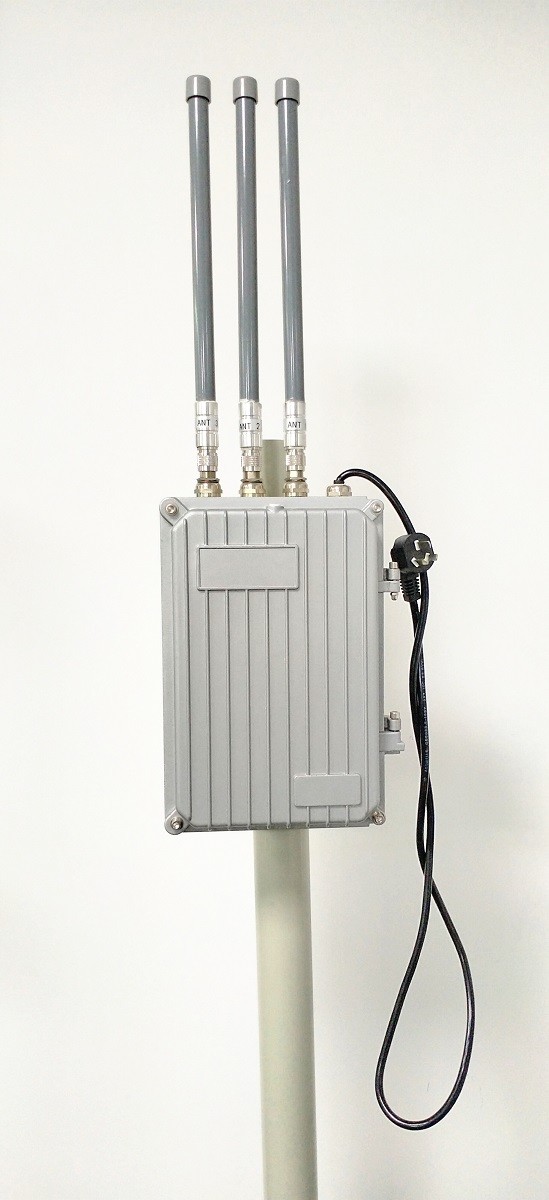

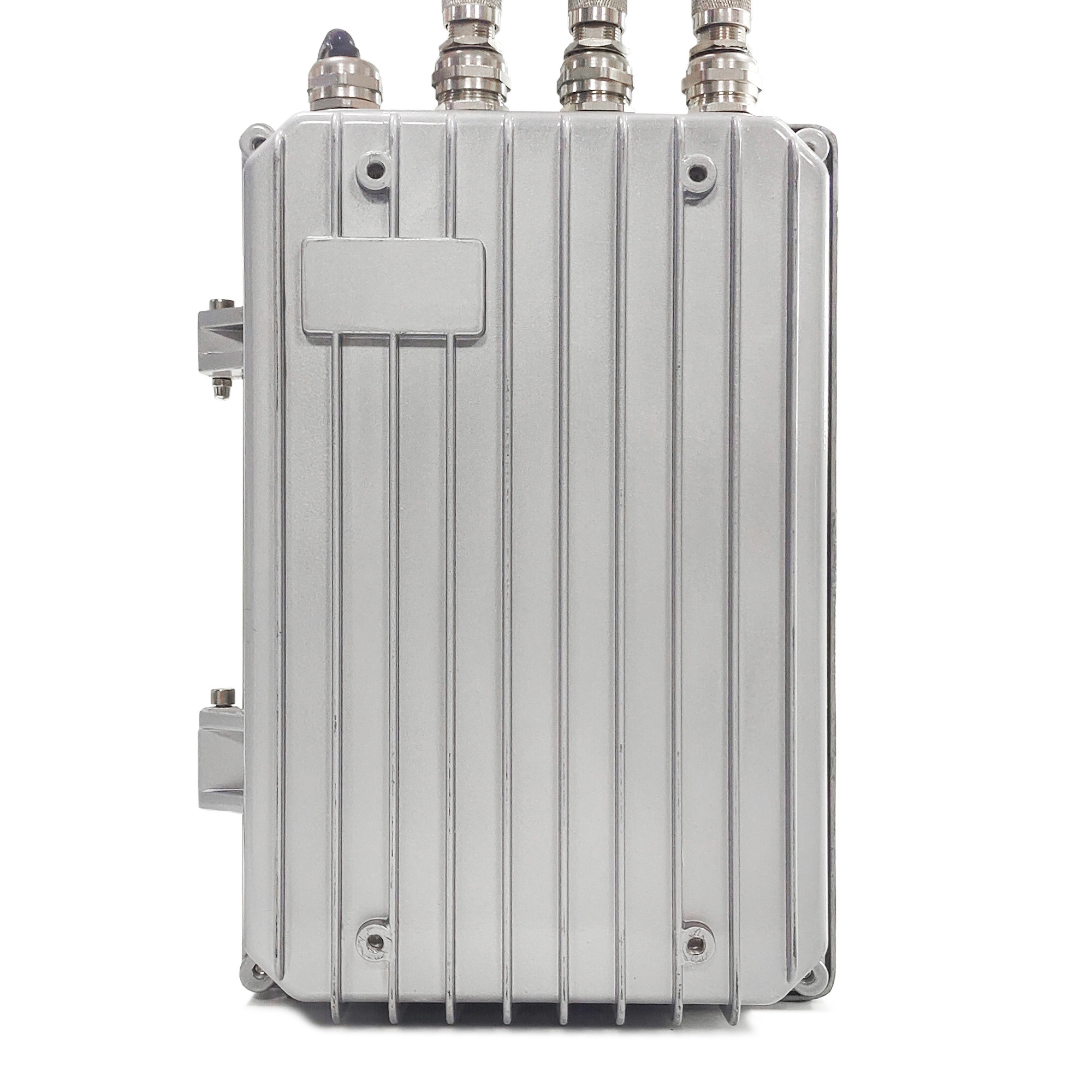

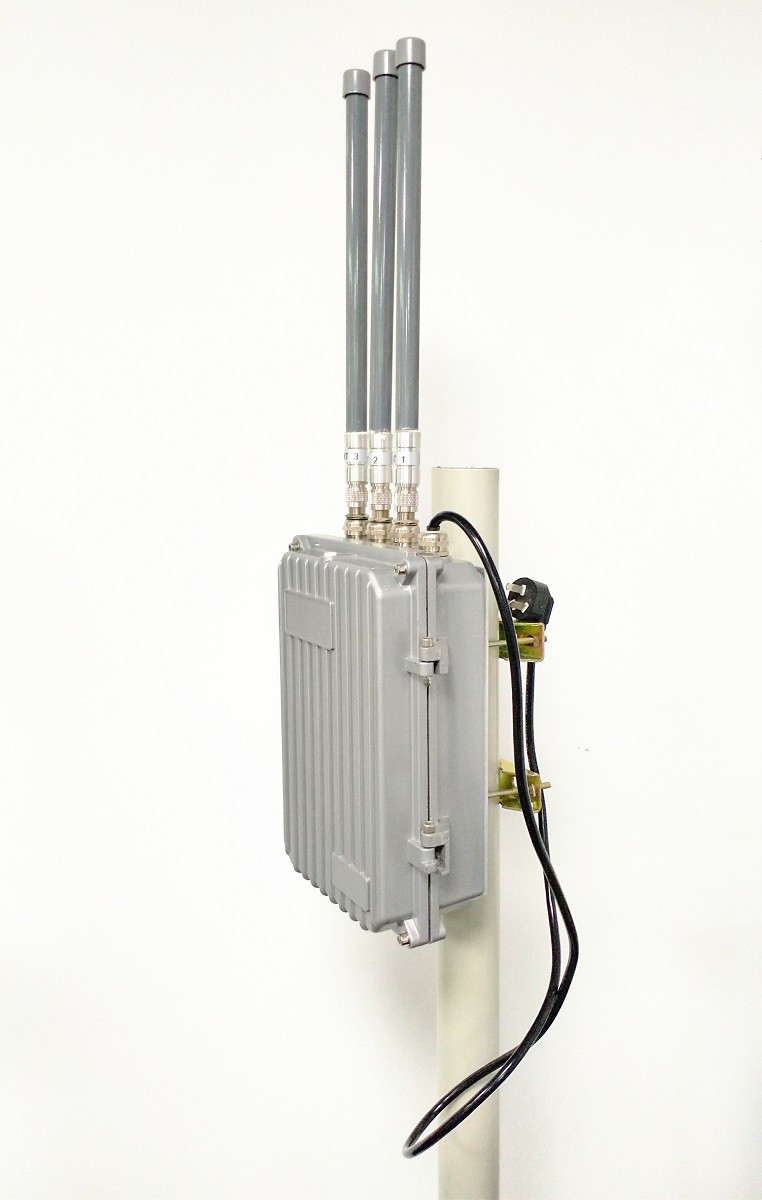

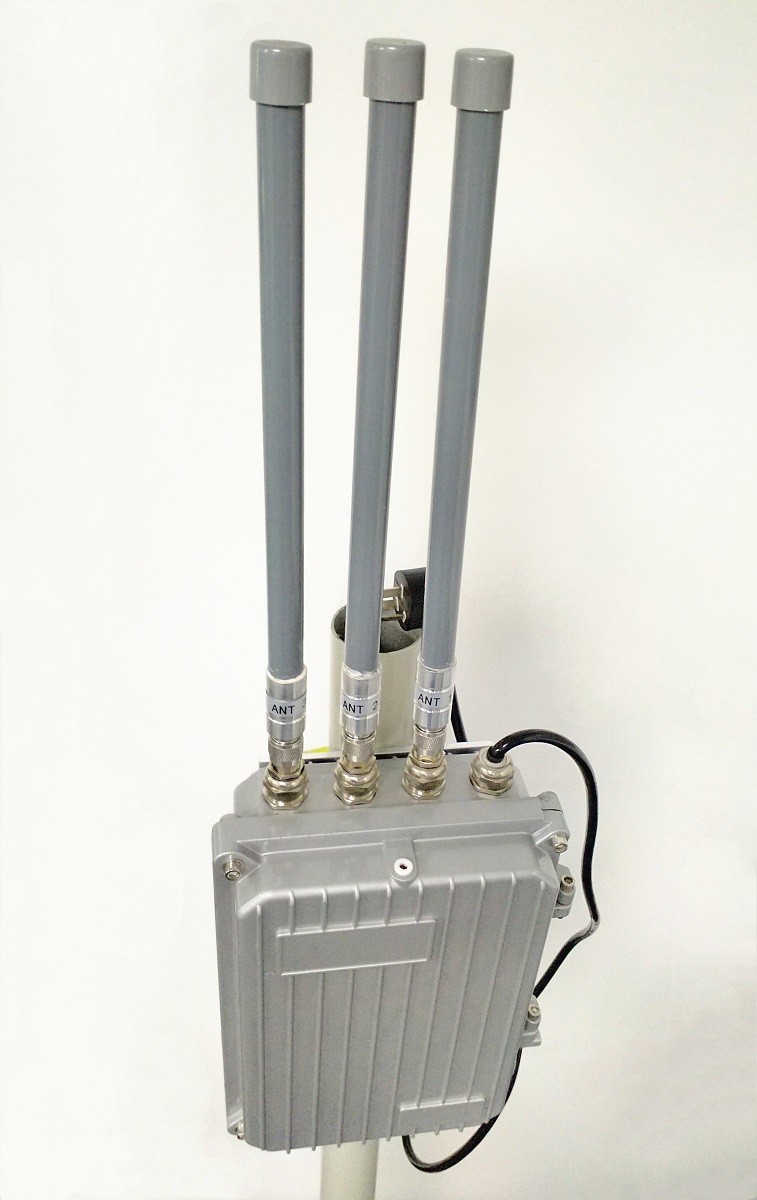

4. Product Photos
