50W 3 / 4 Channels Portable Drone Jammer 1200m Shielding
Place of Origin | Guangdong, China |
---|---|
Brand Name | EST |
Certification | CE, RoHS |
Model Number | UAV420Pro |
Minimum Order Quantity | 1 piece |
Packaging Details | 1 pcs gift box for one device, neutral packing |
Delivery Time | 5-10 working days after received the full payment |
Payment Terms | Paypal, Western Union, T/T |
Supply Ability | 10000 pcs per month |

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Matt Black | Material | High-strength ABS |
---|---|---|---|
Antenna | Built-in High Gain Directional Antennas(Gain: 10dBi) | Total Output Power | 35W / 50W (optional 3/4 Channels) |
Shielding Distance | ≥1200m | Operation Method | Switch On, Then Keep Aiming At The Drone, Then The Drone Will Land Or Return Home(according To The Drone Setting Program.) |
Battery Type | Built-in Removable 29.5V/6000mAh Lithium Battery, Can Continuously Work For 1-2 Hours On A Full Charge(3 Channels) | Power Supply(Charger) | AC Charger(Input: AC100V-240V; Output: DC28V/6.2A), Or DC29.5V/5A External Emergency Power; |
Product Size | 435*200*75 Mm | Package Size | 580*420*230 Mm |
Product Weight | 3.5kg (including Battery) | Warranty | 12 Months |
Highlight | 4 Channels Portable Drone Jammer,1200m Shielding Portable Drone Jammer,50W Portable UAV Interceptor |
2020 Latest Upgraded Version Best Selling 3 / 4 Channels Portable Drone Jammer UAV Interceptor
1. Technology
Type: anti-drone device / portable drone jammer / handheld civilian drone interceptor
Material: High-strength ABS
Antenna: Built-in high gain directional antennas(Gain: 10dBi)
Frequency Band & Output Power(can be customized):
CH1(2.4G WiFi): 2400-2500MHz--------------------------- 42dBm / 15W;
CH2(5.8G WiFi) 5715-5860MHz---------------------------- 40dBm / 10W;
CH3(GPS L1): 1550-1630MHz------------------------------- 40dBm / 10W;
CH4(RC868/915, optional): 868-915MHz------------------ 42dBm / 15W;
Shielding Distance: ≥1200 m
Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours on a full charge
Power Supply(Charger): AC / DC adapter(Input: AC100V-240V; Output: DC28V/6.2A) / DC29.5V/5A external
emergency power.
Operation Method: switch on, then keep aiming at the drone, then the drone will land or return home (according
to the drone setting program).
Product Size: 435*200*75 mm
Product Weight: 3.5kg(including battery)
Environment temperature(-20 ~ +55)℃
Relative humidity: ≤85 %RH
Product Name:
|
2020 Latest Upgraded Version Best Selling 3/4-channel Portable Drone Jammer UAV
Interceptor
|
Model No.:
|
UAV420Pro |
Color:
|
Matt Black
|
Material:
|
High-strength ABS
|
Antenna:
|
Built-in directional antenna
|
Total Output Power:
|
35W / 50W (optional 3/4 Channels)
|
Shielding Distance:
|
≥1200 m
|
Battery Type:
|
Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours
on a full charge(3 channels)
|
Power Supply(Charger):
|
AC charger(Input: AC100V-240V; Output: DC28V/6.2A), or DC29.5V/5A external
emergency power;
|
Intercept Way (Working Principle) |
It can interfere with the flight of drone by emitting multi-band high-power electromagnetic waves, which can intercept the drone control signals within a range of 1200 meters, forcing the drone to land or return home.
|
Operation Method: |
Switch on, then keep aiming at the drone, then the drone will land or return home(according to the drone setting program.)
|
Product Size:
|
435*200*75 mm
|
Package Size:
|
580*420*230 mm
|
Product Weight:
|
3.5kg (including battery)
|
Working Temperature:
|
-40℃ ~ +55℃
|
Relative Humility:
|
≤90%(RH)
|
Air Pressure:
|
86~106kPa
|
Safety Regulation:
|
AC Adapter UL (E190582) / CSA (LR112971 Level 3)
|
2. Application Place *Big event, major sports event, concert, large gathering, border patrol, airport, army, counter-terrorism unit, SWAT, detention center, power plant, gas station, oil refinery, mining area, sensitive facility, private territory, president selection, speech, etc. *Other places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government, military, finance, security, police and command center.
3. Packing List 1). Portable drone jammer main unit-----------------------1 piece 2). Battery---------------------------------------------------------1 piece 3). Power cord----------------------------------------------------1 piece
4). Power adapter------------------------------------------------1 piece
5). PP suitcase ---------------------------------------------------1 piece
6). User manual --------------------------------------------------1 piece
7). Warranty card-------------------------------------------------1 piece

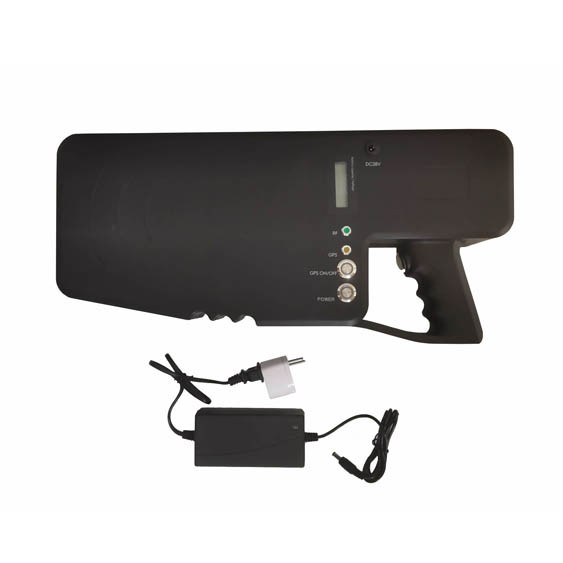

4. Product Photos
