TZ502 5G NR Signals Recognition Device Vehicle Mounted For National Security

TZ502 Vehicle Mounted 5G NR Signals Recognition Device for National Security

1. Introduction

5G vehicle-mounted signal recognition equipment supports 5G SA networking devices without transmitting signals, and adopts third-party reception working mode to realize mobile phone signal recognition and search functions.

2. Applications

Suitable for: public security technical investigation, network investigation, national security, secrecy bureau, military, discipline commission.

3. Features

3.1 The device works completely independently.

3.2 Search criteria: Mobile phone number.

3.3 Cell search and scan function: Scan the base station cell in the 5G SA network environment, obtain cell parameter information, and select the cell for control and guard.

3.4 High device integration, support for four major operators without hardware replacement, support 5G NR TDD and FDD standards.

3.5 Target recognition function: provide the approximate reference distance of the target, and provide the true energy value of the target; Provide low, medium and high gain three gain modes, more accurately display the signal strength value at different distances from the target, more accurate DW target.

3.6 Triggering Mode: Triggered by a non-inductive SMS message.

3.7 Data transmission function, support through data transmission signal sharing to capture the upper number of targets.

4. Technical Data

5.1 Supported frequency bands: All live networks and reserved frequency bands of the four major operators, including N1, N28, N41, N78, N79, N3 and N8

5.2 Guarding frequency points: 2

5.3 Number of guarded cells: ≥6 cells

5.4 Detection and control range: ≥200 meters (based on the actual live network environment)

5.5 Data transmission range: ≥400 meters (subject to the actual environment)

5.6 Positioning accuracy: 1 m

5.7 Power Supply: External power supply DC28V;

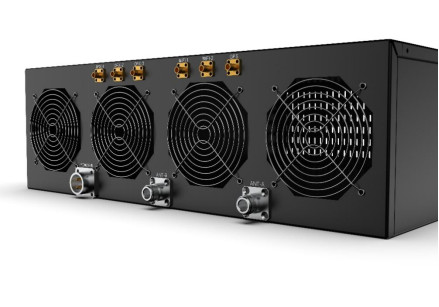

5.8 Host Size: 2U chassis (430 x 500 x 89mm)

5.9 Weight: 20Kg

5. Packing List

1pc x Vehicle Signal Recognition Device

1pc x Operating Terminal

1set x Antenna
