Fixed Wall Mounting High Power 4 Omni Directional Antennas Drone UAV Jammer for Military use
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | mobile phone signal repeater,GSM Signal Repeater |
||
|---|---|---|---|
Product Description

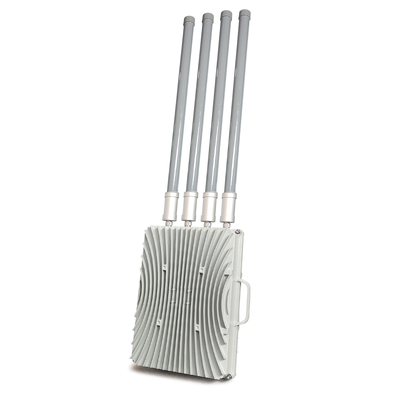

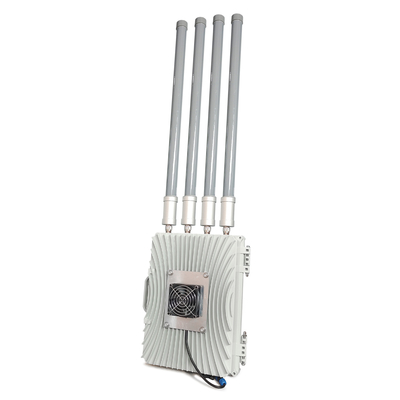

Fixed Wall Mounting High Power 4 Omni Directional Antennas Drone UAV Jammer for Military use
This fixed drone jammer EST-730C4 can interfere with the flight of drone by emitting multi-band high-power electromagnetic waves, which can intercept the drone control signals within radius 10-1200 meters, forcing the drone to land or return home. It's able to make the flying UAV unable to carry on remote control, image / video transmission or positioning, then to make it hover, land or return to ensure the security of low-altitude airspace. With this device, you can easily build a no-fly zone for low-altitude UAVs / drones!
Parameters:
| Channel | Output Port | Frequency Range | Average Output Power |
| 1 | GNSS (GPS L1 / Galileo E1 / Glonass L1 / BeiDou B1) | 1500-1600MHz | 45dBm / 30W |
| 2 | Wi-Fi 2.4G | 2400-2500MHz | 45dBm / 30W |
| 3 | Wi-Fi 5.8G | 5715-5860MHz | 40dBm / 10W |
| 4 | GNSS (GPS L2) | 1170-1280MHz | 45dBm / 30W |
*Type: fixed drone jammer
*Colour: gray
*Shell Material: aluminum alloy
*Antenna: 4pcs high-gain omni-directional FRP antennas / 2pcs high-gain directional panel antenna (optional)
*Jamming Radius: 10-1200 meters without shelter (also depends on the real application place)
*Jamming Objects: small low-altitude drones, drone system, UAV, UAS, WiFi / Bluetooth network, etc.
*Function: effectively counter low-altitude civilian drones such as DJI drones, to efficiently and conveniently ensure the security of low-altitude airspace, counter UAV/UAS.
*Power Input: AC100-240V (built-in AC adapter, output: DC24V 14.6A)
*Total Power Consumption: 200W
*Dimension: 362.8*310*130mm (excluding antennas)
*Antennas: Omni-directional Antennas: Dia 30mm x H 535mm (Gain: 6dBi)
Directional Antenna: L-725 mm x W-170mm x H-93mm (Gain: 10dBi)
*Weight: about 18kg (excluding antennas)
*Working Temperature: -40 to +55℃
*Relative Humility: ≤90%(RH)
*Air Pressure: 86~106kPa
*Safety Regulation: AC Adapter UL (E190582) / CSA (LR112971 Level 3)
*Waterproof level: IP65
*Lighting Protection: DC ground
*Installation Method: Wall-mounted or pole holding
*Suggest Installation Place: roof, or 10m height at least
Applicable Place:
*Airport, prison, power plant, power grid, gas station, oil refinery, mining area, private territory, etc.
*Other sensitive places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government, military, finance, security, police and command center.
Packing List:
Outdoor Fixed Drone Jammer Main Unit (with power cord) x 1pc
FRP Omni-directional Antennas x 4pcs OR Directional Antenna x 2pcs
User Manual x 1EA (optional)
