UAV Anti Drone Box GPS Signal Jammer , High Shielding Range At 1800 Meters

Man-portable Unmanned Aerial Vehicle Interceptor, GPS Signal Jammer, WIFI Isolator

Target: UAV flying below 1800m

Product Manual: This product is to control the UAV under flight condition and cut off the connection between UAV and remote controller distantly by launching high-power electromagnetic waves. It’s able to make the UAV land in situ or return to the starting point to ensure the security of low-altitude airspace.

Main Applications:

1) Protection of domestic prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;

2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;

3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.

Product Description:

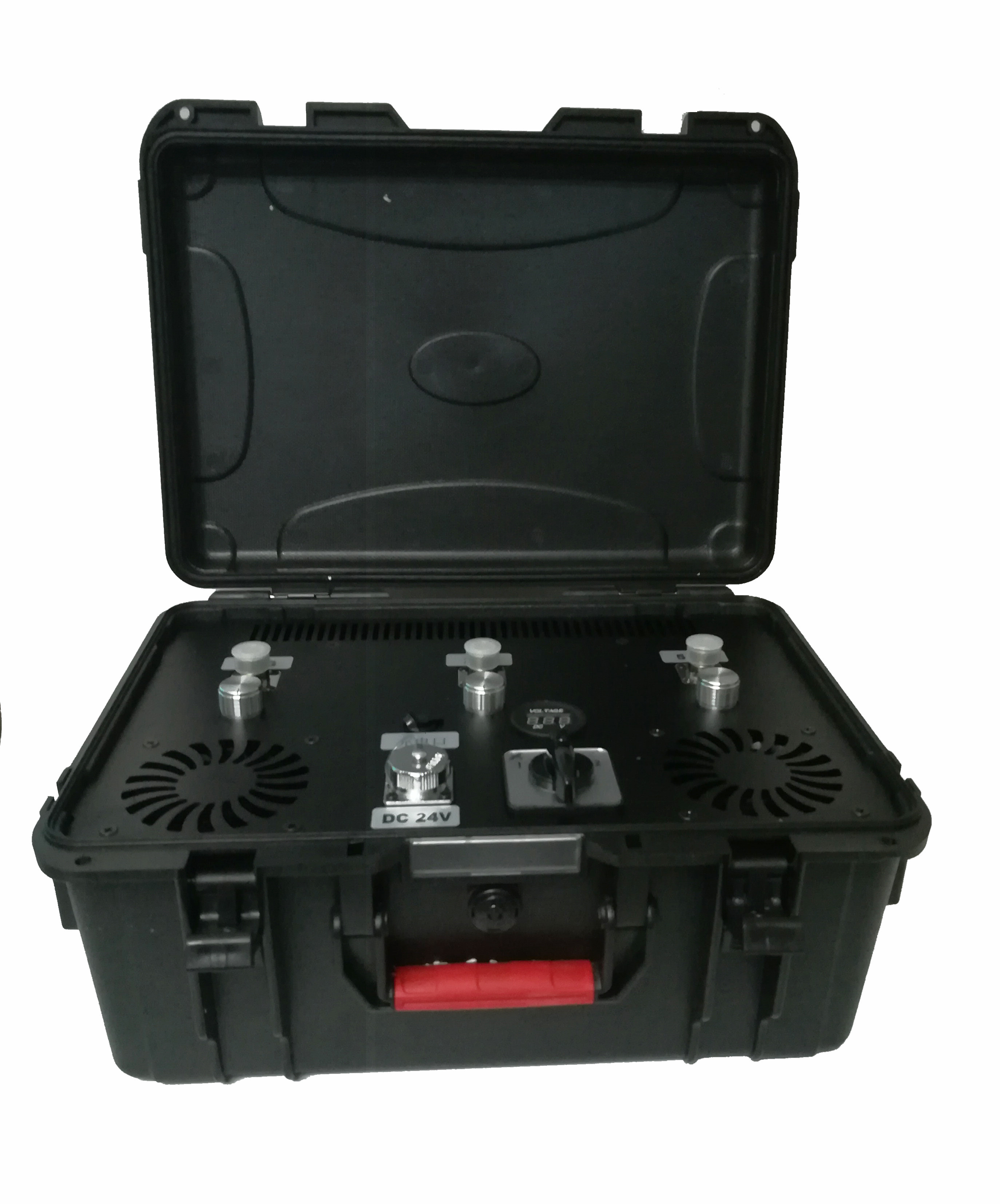

1. Composition: Interception system host, charging power, antenna and cable;

2. Portable design: light box design, easy operation;

3. Regulatory model: In situ landing or returning to takeoff point;

4. The most remote control distance: 1800 meters (covering the entire low open area);

5. Built-in high-capacity lithium battery: can be used in any place, 60 minutes endurance;

6. With DC 24V power port, can be connected with car charger in 24V power;

7. Simple operation: a button switch machine, two modes: landing and return;

8. Appearance: light box design, effective shielding to target suspects;

9. Objective: remote control, GPS, GLONASS and 2.4G, 5.8G communication equipment.

Main Specifications:

1. Farest Control Distance: 1800 meters (covering the entire low open area);

2. Built-in High-capacity Lithium Battery: working continously for 30 minutes;

3. Portable Operation: switch on, aiming and then blocking;

4. Control Mode: button switching, the UAV can land in situ or return to taking-off point;

5. Host Weight: ≤ 6.25 kg;

6. Host Size: 360 x 270 x 170mm;

7. Host Structure: high-strength ABS material, reduce the weight of equipment;

9. Temperature of Working Environment: -10 ℃ / +55 ℃;

10. Temperature of Storage Environment: -20 ℃ / +60 ℃

11. Total Power: 23W

2.4G WIFI: 10W

5.8G Image Transfer: 3W

1.5G GPS: 10W

12. Packing Method:

each with polyfoam and brown box, 1pc pack into master carton.

carton weight in 5.5KG, master carton size in 43x26x87cm

13. Packing List:

Cabinet Interceptor Host 1pc

Antenna and its accessories 1set

Charger 1pc
